Flags and state machine Diagram#

The GET /booking-flow/v1/bookings/{{bookingId}} endpoint is crucial for tracking the status of a booking within the Amadeus system.

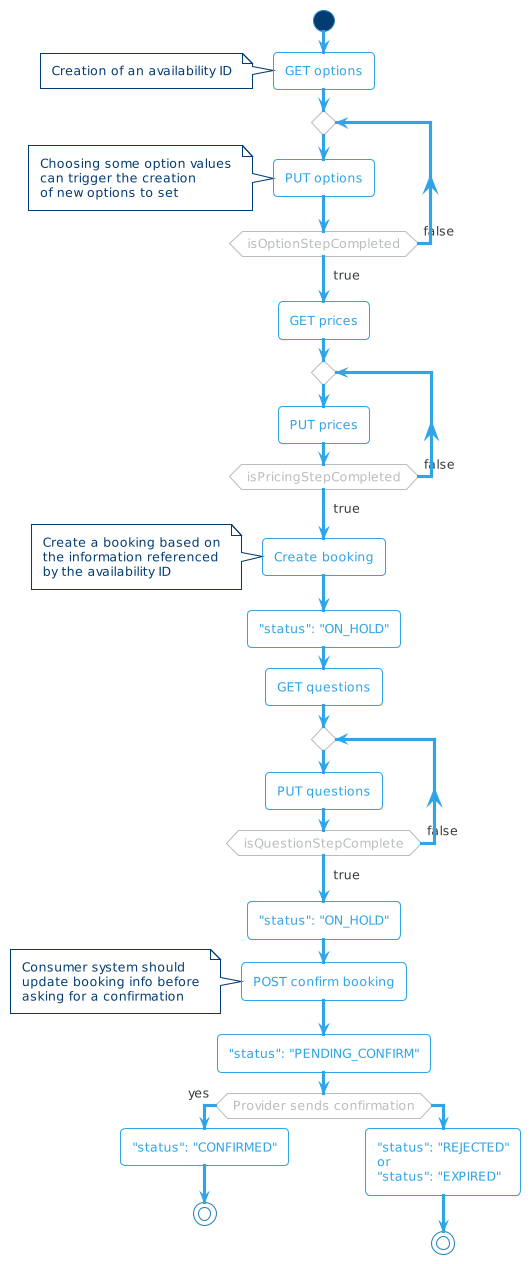

The booking process initiates with a product ID. Each step in this process has certain pre-conditions that must be met. Our API performs validations at each step, using flag checks as specified in the subsequent diagram.

!theme cerulean-outline start :GET options; note left Creation of an availability ID end note repeat :PUT options; repeat while (isOptionStepCompleted) is (false) note left Choosing some option values can trigger the creation of new options to set end note ->true; :GET prices; repeat :PUT prices; repeat while (isPricingStepCompleted) is (false) ->true; :Create booking; note left Create a booking based on the information referenced by the availability ID end note :"status": "ON_HOLD"; :GET questions; repeat :PUT questions; repeat while (isQuestionStepComplete) is (false) ->true; :"status": "ON_HOLD"; :POST confirm booking; note left Consumer system should update booking info before asking for a confirmation end note :"status": "PENDING_CONFIRM"; if (Provider sends confirmation) then (yes) :"status": "CONFIRMED"; stop else :"status": "REJECTED" or "status": "EXPIRED"; stop

Cancellation of a confirmed booking is supported.

!theme cerulean-outline start :"status": "CONFIRMED"; :DEL booking; <<input>> :"status": "CONFIRMED" "cancellationRequestDatetime": "2023-12-14T08:53:05.349043Z"; if (Provider accepts cancellation) then (yes) :"status": "CANCELLED"; stop else (no) :"status": "CONFIRMED"; stop
